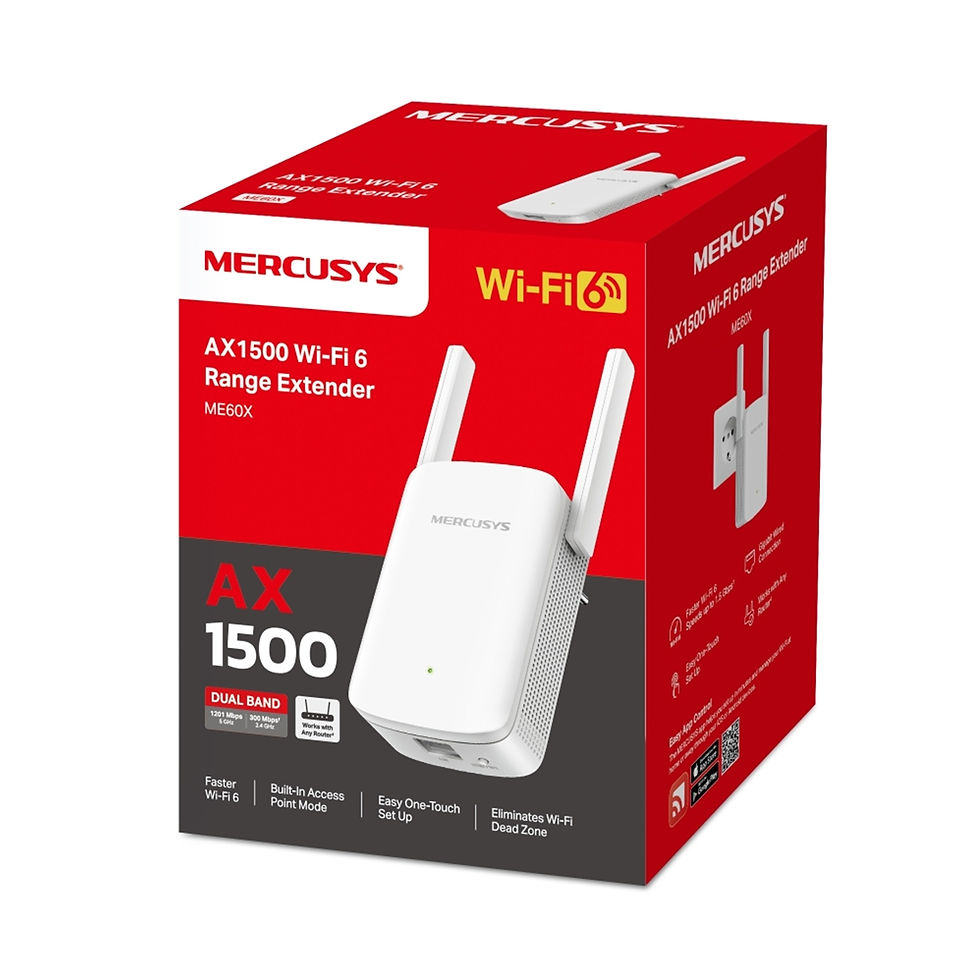

Mercusys ME60X AX1500 Wi-Fi Range Extender
Mercusys ME60X AX1500 Wi-Fi 6 Range Extender
Dual Band Speeds up to 1500 Mbps
1201 Mbps on 5 GHz and 300 Mbps on 2.4 GHz.
Armed with WiFi 6
Improves virtually every aspect of your network: speed, efficiency, and capacity.
Gigabit Wired Connection
Provides speedy wired connections for PCS, IPTVS.and game consoles.

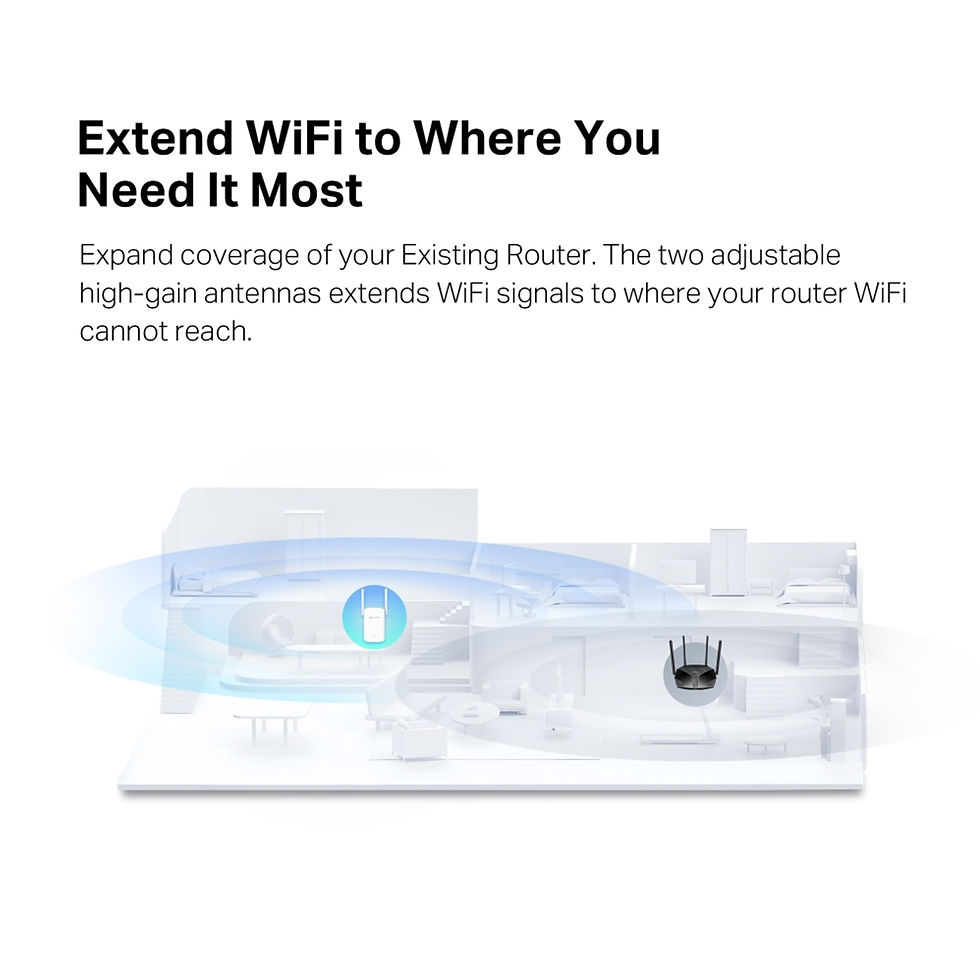

Works with Any Routers
To Extend WiFi to Where You Need It Most.
Easy One-Touch Setup
Press the WPS button to expand your Wi-Fi coverage in seconds.
Built-In Access Point Mode
Works as RE mode and AP mode.
Manage Your Network with App
Set up in minutes and manage your Wi-Fi at home or away through your iOS or Android devices.
Wireless
Wireless Standards
IEEE 802.11a/n/ac/ax 5GHz,
IEEE 802.11b/g/n 2.4GHz
Frequency
2.4GHz and 5GHz
Signal Rate
300 Mbps at 2.4GHz, 1201 Mbps at 5GHz
Reception Sensitivity
5 GHz:
11ax HE80 MCS0: -88 dBm
11ax HE80 MCS11: -58 dBm
11a 6Mbps: -94 dBm
11a 54Mbps: -76 dBm
11ac VHT80 MCS0: -91dBm
11ac VHT80 MCS9: -63dBm
2.4 GHz:
11g 6Mbps: -95 dBm
11g 54Mbps: -77 dBm
11n HT40: -72dBm
Wireless Security
WPA, WPA2, WPA3-PSK
Hardware
Dimensions (W X D X H)
84.7 x 39 x 112 mm (Without Plug)
Interfaces
1 Gigabit Ethernet Port
Button
WPS / Reset Button
Antenna Type
2x External Antennas
Power Consumption
10W
Certifications
RoHS
Package Contents
Wi-Fi Range Extender ME60X
Quick Installation Guide
Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
