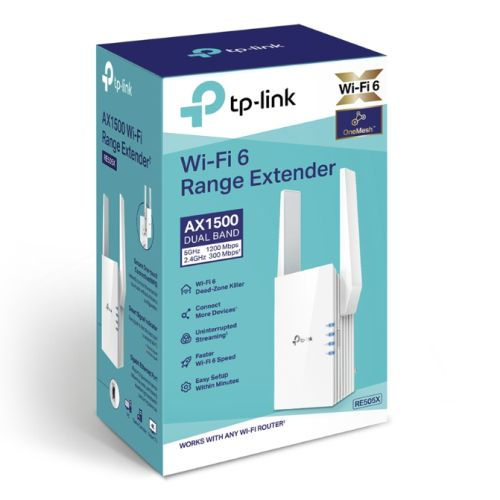

TP-LINK AX1500 (300+1200) Dual Band Wall-Plug Wi-Fi 6 Range Extender, 1 x GB LAN

TP-LINK AX1500 (300+1200) Dual Band Wall-Plug Wi-Fi 6 Range Extender, 1 x GB LAN

SKU: RE505X

AX1500 Wi-Fi Range Extender

  • RE505X comes equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion.
  • Creates a Mesh network by connecting to a OneMesh router for seamless whole-home coverage.
  • Gigabit Ethernet Port – Provide faster-wired connections to smart TVs, computers and gaming consoles
  • Intelligent Signal Light – Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength in the current placement
  • AP Mode – create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability
  • TP-LINK Tether App – Easily access and manage your network using any iOS or Android mobile device
  • Ultimate Compatibility – Extend the range of any Wi-Fi router or wireless access point


Cutting-Edge Wi-Fi 6

The latest Wi-Fi technology eliminates annoying lag, endless loading, and dead spots. Enjoy the future of faster network loads and more connections.

Fill Every Inch of Your Home with Wi-Fi 6

The 505X wirelessly connects to your router, boosting your Wi-Fi 6 signal throughout your home so you can binge watch your favorite show anywhere.

Adaptive Path Selection

Keeps your network running at top-speed by automatically choosing the fastest connection path to the router.

High Speed Mode

Use both Wi-Fi bands to enjoy super-fast connections - ideal for HD streaming and gaming.



Built-In Access Point Mode

RE505X is more than just a wireless range extender.

Simply plug an Ethernet cable into its port to easily turn that wired connection into a high-speed dual band wireless signal.

Primary Function

Range Extender

Bands

Dual Band

Wi-Fi Rating

AX1500

Max Single Band Wi-Fi Rate

1200 Mbps

Max Wired Transfer Rate

10/100/1000 Mbps

Interface(s)

1 x Gigabit Ethernet Port

Wireless Standards

IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n 2.4GHz

Antenna(s)

2 External Antennas

Button(s)

WPS Button, Reset Button

Power Supply

Wall plug

Power Consumption

10W

Dimensions

74.0 x 46 x 124.8 mm

Suitable for Outdoor

No

Frequency

2.4GHz: 300 Mpbs
5GHz: 1200 Mbps

Reception Sensitivity

5GHz:
11a 6Mbps: -93dBm,
11a 54Mbps: -75dBm
11ac HT20 MCS0: -92dBm,
11ac HT20 MCS8: -70dBm
11ac HT40 MCS0: -90dBm,
11ac HT40 MCS9: -66dBm
11ac HT80 MCS0: -87dBm,
11ac HT80 MCS9: -62dBm

2.4GHz:
11g 54Mbps: -77dBm,
11n HT20 MCS7: -75dBm
11n HT40 MCS7: -72dBm

Wireless Modes

Range Extender / Access Point Mode

Wireless Functions

Enable/Disable Wireless Radio, Wireless Statistics

Security

64/128-bit WEP, WPA/WPA-PSK2 encryptions

Package Contents

Wi-Fi Range Extender RE505X
Quick Installation Guide

Package Type

Retail

Package Weight

0.4180 kg

Warranty

3 Years

£49.99Price
Quantity
Only 2 left in stock
!
